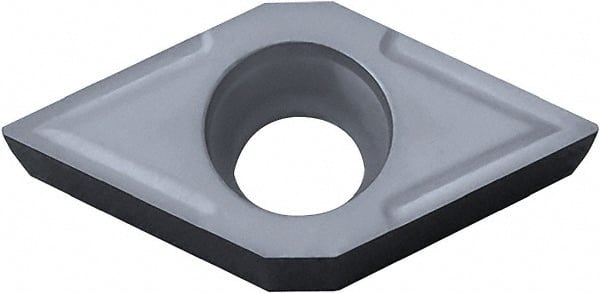

Kyocera - DCMT32.52 Grade CA4515 Carbide Turning Insert - TiCN/Al2O3 Finish, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 50405869
Brand: Kyocera
Model #: 8831354
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Insert Size | 32.52 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | CA4515 |
| Coating | TiCN/Al2O3 |
| Hole Diameter (mm) | 4.39 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | DCMT11T308 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DCMT3252 CA4515 |
| Primary Workpiece Material | K |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
