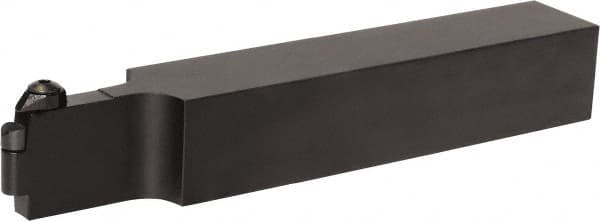

Kyocera - CRDC, Neutral Cut, 90° Lead Angle, 1" Shank Height x 1" Shank Width, Positive Rake Indexable Turning Toolholder - 8" OAL, RC..102.. Insert Compatibility, Series CRDC
Item #: 50418136
Brand: Kyocera
Model #: 8603998
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | CRDC |
| Rake | Positive |
| Rake Angle | 15 |
| Series | CRDC |
| Lead Angle | 90 |
| Shank Width (Inch) | 1 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 8.0000 |
| Insert Compatibility | RC..102.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; External Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Head Length (Decimal Inch) | 1.0000 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
