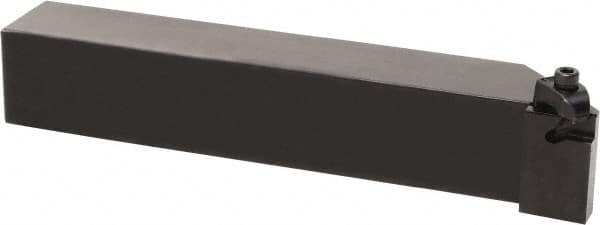

Kyocera - 0.294" Max Depth, 0.031" to 1/4" Width, External Right Hand Indexable Grooving Toolholder
Item #: 50419167
Brand: Kyocera
Model #: 8604065
Product Specifications
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut | 0.2940 |
| Maximum Depth of Cut (Inch) | 0.2940 |
| Maximum Depth of Cut (Decimal Inch) | 0.2940 |
| Minimum Groove Width (Decimal Inch) | 0.0310 |
| Maximum Groove Width (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | KKC |
| Insert Compatibility | KC.. 20..; KC.. 21..; KC.. 30..; KC.. 31..; KC.. 41..; KC.. 42.. |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Series | KKC |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp or Screw |
| Maximum Hole Depth (Decimal Inch) | 1.3800 |
| Maximum Bore Depth (Decimal Inch) | 1.3800 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Height (Decimal Inch) | 1.7150 |
| Head Length (Decimal Inch) | 1.3800 |
| Shank Length (Decimal Inch) | 4.6200 |
| Manufacturers Catalog Number | KKCR204D |
| Height to Shank Top (Decimal Inch) | 1.2500 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | KCGP 4125; KCGP 4189; KCGP 4213; KCGP 4219; KCGP 4250; KCRP 4125 |
