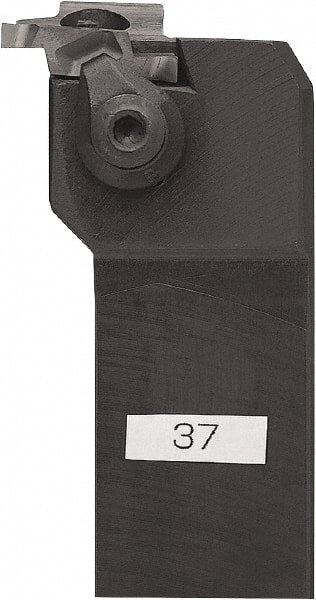

Kyocera - GFVT, External, Right Hand, 4.5974mm Max Depth of Cut, 2.4892 to 5.9944mm Groove Width, Indexable Grooving Tool Holder - GVF... B, GVF... BR Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 125mm OAL
Item #: 50419597
Brand: Kyocera
Model #: 8810991
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1810 |
| Maximum Depth of Cut (mm) | 4.60 |
| Minimum Groove Width (Decimal Inch) | 0.0980 |
| Minimum Groove Width (mm) | 2.49 |
| Maximum Groove Width (mm) | 5.99 |
| Maximum Groove Width (Decimal Inch) | 0.2360 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Toolholder Style | GFVT |
| Insert Compatibility | GVF... B; GVF... BR |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | GFVT |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| igrvh Maximum Bore Depth (mm) | 22.00 |
| Back of Bar to Cutting Edge (mm) | 30.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1811 |
| Head Height (Decimal Inch) | 1.1417 |
| Head Height (mm) | 29.00 |
| Head Length (mm) | 22.00 |
| Head Length (Decimal Inch) | 0.8661 |
| Shank Length (mm) | 103.00 |
| Shank Length (Decimal Inch) | 4.0551 |
| Manufacturers Catalog Number | GFVTR2020K501B |
| Complete Insert Compatibility | GVFL/R 250 to 350-020B; GVFL/R 300 to 150BR |
| Minimum BoreDiameter (mm) | 50.00 |
