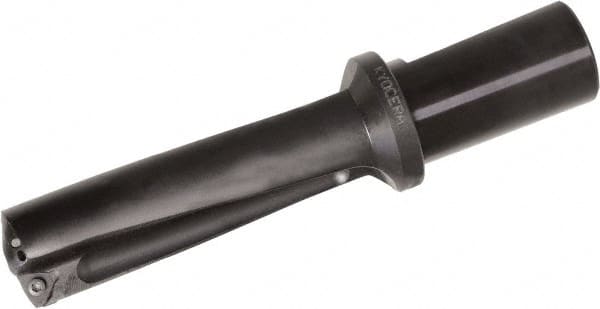

Kyocera - 2.95" Max Drill Depth, 25mm Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Whistle Notch Shank
Item #: 50420199
Brand: Kyocera
Model #: 8600787
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 25.00 |
| Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Depth (Decimal Inch) | 2.9500 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9840 |
| Overall Length/Projection (Decimal Inch) | 6.1700 |
| Insert Compatibility | WCMX 050308-M1A |
| Body Length (Decimal Inch) | 3.8900 |
| Shank Length (Decimal Inch) | 2.2800 |
| Collar Diameter (Decimal Inch) | 1.0000 |
| Series | Holeshot |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
