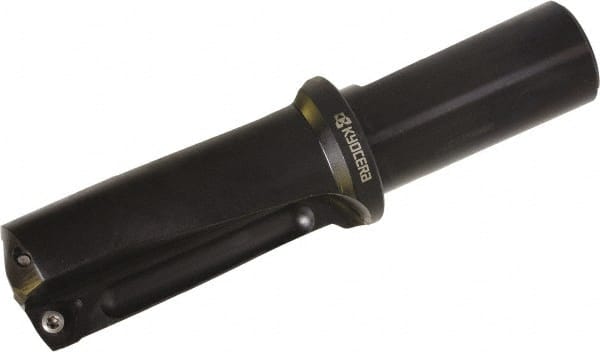

Kyocera - 3.88" Max Drill Depth, 2.219" Diam, Indexable Insert Drill - 4 Inserts, 1-1/2" Shank Diam, Whistle Notch Shank
Item #: 50420322
Brand: Kyocera
Model #: 8600922
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Decimal Inch) | 2.2190 |
| Maximum Drill Depth (Decimal Inch) | 3.8800 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Number of Drill Inserts | 4 |
| Maximum Drill Diameter (Decimal Inch) | 2.2190 |
| Overall Length/Projection (Decimal Inch) | 7.8100 |
| Insert Compatibility | WCMX 06T308-M1A |
| Body Length (Decimal Inch) | 5.1300 |
| Shank Length (Decimal Inch) | 2.6900 |
| Collar Diameter (Decimal Inch) | 1.5000 |
| Series | Holeshot |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
