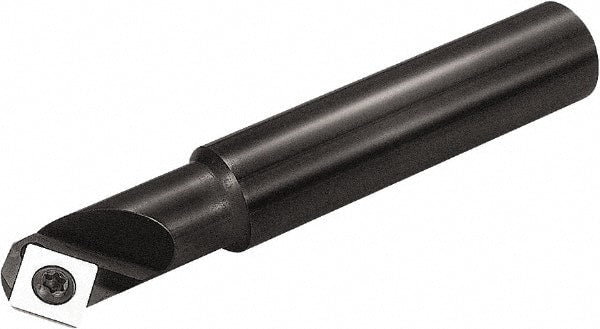

Kyocera - 45° Lead Angle, 15mm Max Cut Diam, 4mm Min Cut Diam, 6.5mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 1 Insert, SDKW 09T2, SDMT 09T2 Insert Style, 85mm Overall Length, Straight Shank
Item #: 50420371
Brand: Kyocera
Model #: 8812455
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.629921 |
| Minimum Cutting Diameter (Decimal Inch) | 0.157480 |
| Minimum Cutting Diameter (mm) | 4.00 |
| Maximum Cutting Diameter (mm) | 15.00 |
| Maximum Cutting Diameter (Decimal Inch) | 0.590551 |
| Shank Type | Flatted |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.629921 |
| Lead Angle | 45 |
| Overall Length (mm) | 85.00 |
| Overall Length (Decimal Inch) | 3.3465 |
| Insert Style | SDKW 09T2; SDMT 09T2 |
| Series | MCSE |
| Maximum Depth of Cut (Decimal Inch) | 0.2559 |
| Maximum Depth of Cut (mm) | 6.50 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| Toolholder Style | MCSE |
| Number of Flutes | 1 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Weldon Flat | No |
| Axial Rake Angle | 0 |
| Radial Rake Angle | -4.50 |
| Shank Length (mm) | 55.00 |
| Shank Length (Decimal Inch) | 2.1654 |
| Complete Insert Compatibility | SDKW 09T204FN; SDKW 09T204TN; SDMT 09T204C |
