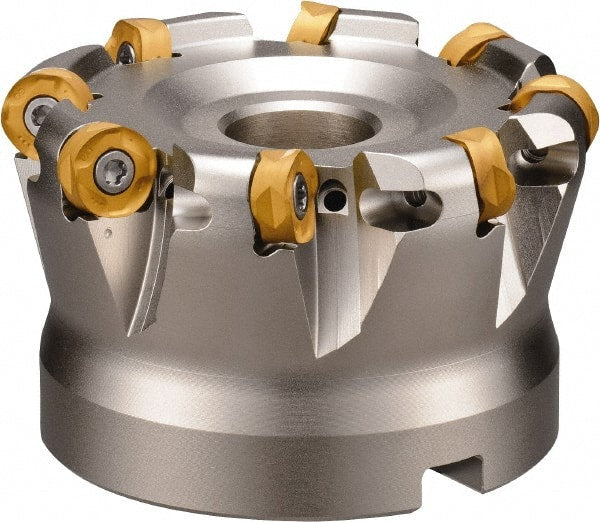

Kyocera - 3" Cut Diam, 8.001mm Max Depth, 0.381" Arbor Hole, 7 Inserts, ROMU 16... Insert Style, Indexable Copy Face Mill - MRW Cutter Style, 11,000 Max RPM, 1.969" High, Through Coolant, Series RAD-8
Item #: 50420587
Brand: Kyocera
Model #: 8838476
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (Decimal Inch) | 0.3810 |
| Overall Height (Decimal Inch) | 1.9690 |
| Series | RAD-8 |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | ROMU 16... |
| Cutter Style | MRW |
| Through Coolant | Yes |
| Maximum RPM | 11000 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Insert Inscribed Circle (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.6299 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.8660 |
| Complete Insert Compatibility | ROMU 1605M0ER-GH; ROMU 1605M0ER-GM; ROMU 1605M0ER-SM |
| ISO Number | MRW3000R-16-7T |
