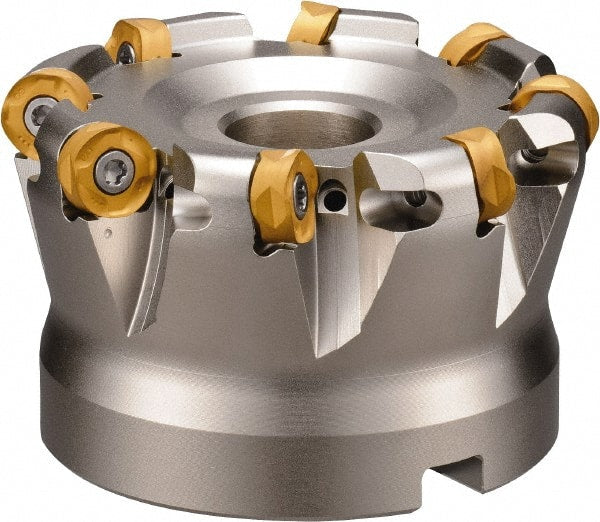

Kyocera - 4" Cut Diam, 5.9944mm Max Depth, 5/8" Arbor Hole, 9 Inserts, ROMU 12... Insert Style, Indexable Copy Face Mill - MRW Cutter Style, 10,600 Max RPM, 1.969" High, Through Coolant, Series RAD-8
Item #: 50420595
Brand: Kyocera
Model #: 8838460
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (mm) | 5.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Arbor Hole Diameter (Decimal Inch) | 0.6250 |
| Overall Height (Decimal Inch) | 1.9690 |
| Series | RAD-8 |
| Number of Cutter Inserts | 9 |
| Insert Compatibility | ROMU 12... |
| Cutter Style | MRW |
| Through Coolant | Yes |
| Maximum RPM | 10600 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 3.5400 |
| Insert Inscribed Circle (mm) | 12.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.4724 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 2.0470 |
| Complete Insert Compatibility | ROMU 1204M0ER-GH; ROMU 1204M0ER-GM; ROMU 1204M0ER-SM |
| ISO Number | MRW4000R-12-9T |
