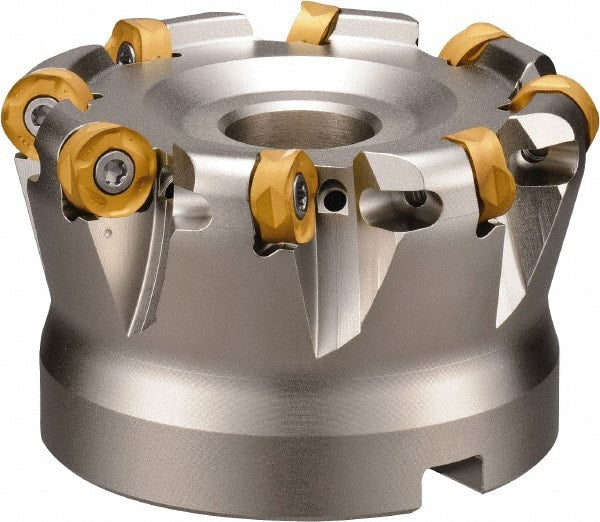

Kyocera - 4" Cut Diam, 8.001mm Max Depth, 5/8" Arbor Hole, 8 Inserts, ROMU 16... Insert Style, Indexable Copy Face Mill - MRW Cutter Style, 9,600 Max RPM, 1.969" High, Through Coolant, Series RAD-8
Item #: 50420603
Brand: Kyocera
Model #: 8838373
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (Decimal Inch) | 0.6250 |
| Overall Height (Decimal Inch) | 1.9690 |
| Series | RAD-8 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | ROMU 16... |
| Cutter Style | MRW |
| Through Coolant | Yes |
| Maximum RPM | 9600 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 3.5400 |
| Insert Inscribed Circle (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.6299 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 2.0470 |
| Complete Insert Compatibility | ROMU 1605M0ER-GH; ROMU 1605M0ER-GM; ROMU 1605M0ER-SM |
| ISO Number | MRW4000R-16-8T |
