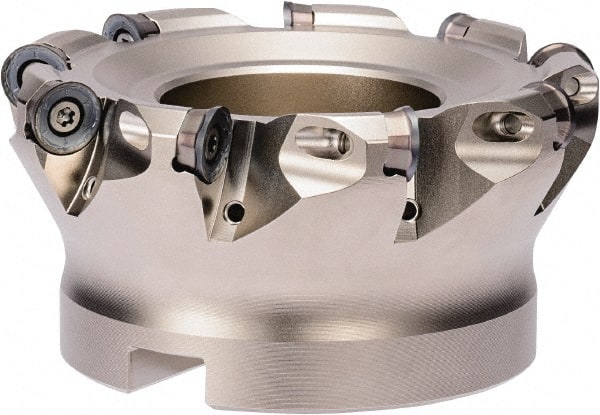

Kyocera - 80mm Cut Diam, 6mm Max Depth, 9.5mm Arbor Hole, 8 Inserts, RPGT 12, RPMT 12 Insert Style, Indexable Copy Face Mill - MRX Cutter Style, 13,500 Max RPM, 50mm High, Through Coolant, Series RAD-6
Item #: 50420686
Brand: Kyocera
Model #: 8839193
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 9.50 |
| Arbor Hole Diameter (Decimal Inch) | 0.3740 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | RAD-6 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | RPGT 12; RPMT 12 |
| Cutter Style | MRX |
| Through Coolant | Yes |
| Maximum RPM | 13500 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.7559 |
| Hub Diameter (mm) | 70.00 |
| Insert Inscribed Circle (mm) | 12.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.4724 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.7874 |
| Counterbore Diameter (mm) | 20.00 |
| Complete Insert Compatibility | RPGT 1204M0ER-GM; RPGT 1204M0ER-SM; RPMT 1204M0EN-GH; RPMT 1204M0ER-GM |
| ISO Number | MRX080R-12-8T |
