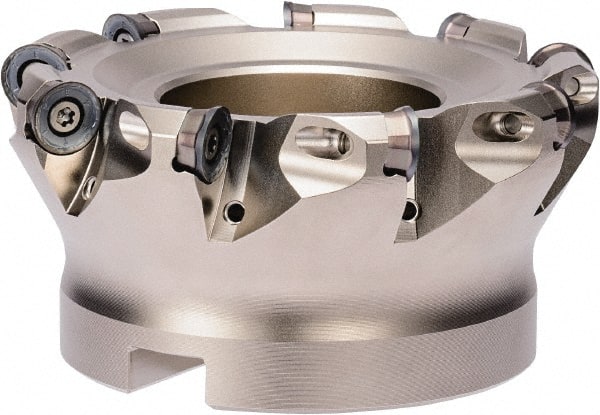

Kyocera - 100mm Cut Diam, 8mm Max Depth, 12.7mm Arbor Hole, 7 Inserts, RPGT 16, RPMT 16 Insert Style, Indexable Copy Face Mill - MRX Cutter Style, 10,000 Max RPM, 50mm High, Through Coolant, Series RAD-6
Item #: 50420710
Brand: Kyocera
Model #: 8839207
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (mm) | 12.70 |
| Arbor Hole Diameter (Decimal Inch) | 0.5000 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | RAD-6 |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | RPGT 16; RPMT 16 |
| Cutter Style | MRX |
| Through Coolant | Yes |
| Maximum RPM | 10000 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 3.0709 |
| Hub Diameter (mm) | 78.00 |
| Insert Inscribed Circle (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.6299 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 1.8110 |
| Counterbore Diameter (mm) | 46.00 |
| Complete Insert Compatibility | RPGT 1605M0ER-GM; RPGT 1605M0ER-SM; RPMT 1605M0EN-GH; RPMT 1605M0ER-GM |
| ISO Number | MRX100R-16-7T |
