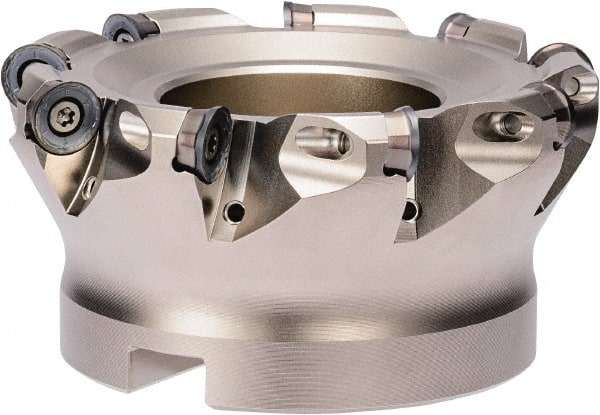

Kyocera - 2-1/2" Cut Diam, 0.315" Max Depth, 0.313" Arbor Hole, 5 Inserts, RPGT 16, RPMT 16 Insert Style, Indexable Copy Face Mill - MRX Cutter Style, 13,500 Max RPM, 1.575" High, Through Coolant, Series RAD-6
Item #: 50420769
Brand: Kyocera
Model #: 8606542
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (Decimal Inch) | 0.3130 |
| Overall Height (Decimal Inch) | 1.5750 |
| Series | RAD-6 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RPGT 16; RPMT 16 |
| Cutter Style | MRX |
| Through Coolant | Yes |
| Maximum RPM | 13500 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Insert Inscribed Circle (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.6300 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.6690 |
| Complete Insert Compatibility | RPGT 1605M0ER-GM; RPGT 1605M0ER-SM; RPMT 1605M0EN-GH; RPMT 1605M0ER-GM |
| ISO Number | MRX2500R-16-5T |
