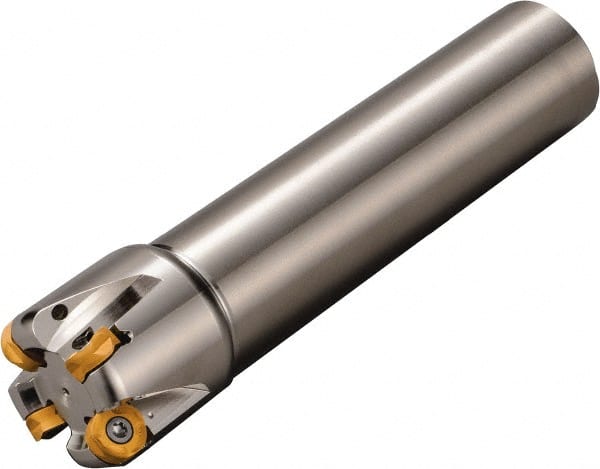

Kyocera - 38.1mm Cutting Diam, 1-1/4" Shank Diam, 5.99mm Max Depth of Cut, Weldon Flat Indexable Copy End Mill - 4 Inserts, ROMU 12... Insert, MRW Toolholder
Item #: 50420793
Brand: Kyocera
Model #: 8838342
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 38.1000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.50 |
| Maximum Depth of Cut (mm) | 5.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.25 |
| Number of Cutter Inserts | 4 |
| Insert Style | ROMU 12... |
| Toolholder Style | MRW |
| Series | RAD-8 |
| Overall Length (Decimal Inch) | 3.8560 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Head Length (Decimal Inch) | 1.5750 |
| ISO Number | MRW1500-W125-12-4T |
