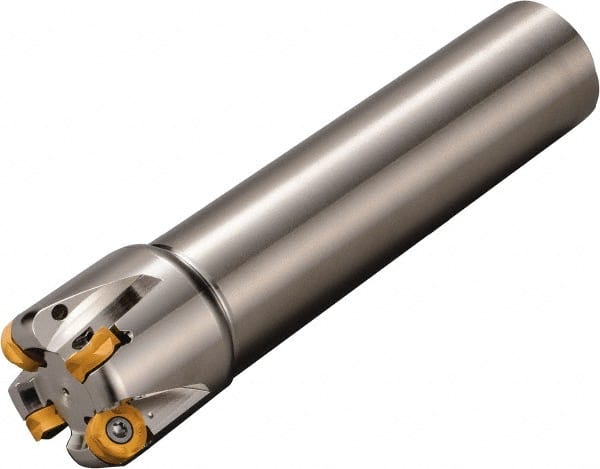

Kyocera - 50mm Cutting Diam, 42mm Shank Diam, 6mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 5 Inserts, ROMU 12... Insert, MRW Toolholder
Item #: 50420868
Brand: Kyocera
Model #: 8838422
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.968504 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 42.00 |
| Shank Diameter (Decimal Inch) | 1.653543 |
| Number of Cutter Inserts | 5 |
| Insert Style | ROMU 12... |
| Toolholder Style | MRW |
| Series | RAD-8 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| ISO Number | MRW50-S42-12-5T |
