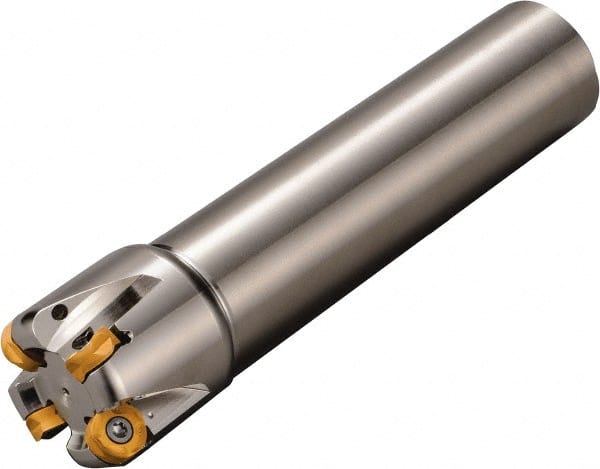

Kyocera - 63mm Cutting Diam, 40mm Shank Diam, 8mm Max Depth of Cut, Weldon Flat Indexable Copy End Mill - 5 Inserts, ROMU 16... Insert, MRW Toolholder
Item #: 50420892
Brand: Kyocera
Model #: 8838439
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.480315 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.574803 |
| Number of Cutter Inserts | 5 |
| Insert Style | ROMU 16... |
| Toolholder Style | MRW |
| Series | RAD-8 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| ISO Number | MRW63-W40-16-5T |
