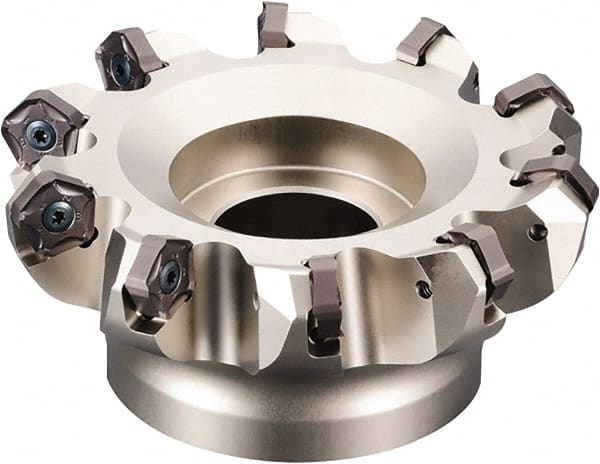

Kyocera - 254mm Cut Diam, 63.5mm Arbor Hole, 6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 16 Inserts, PNEU 1205\xB6PNMU 1205 Insert, Right Hand Cut, 16 Flutes, Series MFPN
Item #: 50421114
Brand: Kyocera
Model #: 8606116
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 0 |
| Cutting Diameter (mm) | 254.00 |
| Cutting Diameter (Decimal Inch) | 10.0000 |
| Arbor Hole Diameter (mm) | 63.50 |
| Arbor Hole Diameter (Inch) | 0 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.48 |
| Insert Compatibility | PNEU 1205; PNMU 1205 |
| Series | MFPN |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 (GM/SM/GH); 0.1969 (GL); 0.1181 (W) |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Cutter Style | MFPN |
| Number of Flutes | 16 |
| Cutting Rake Angle | -6 |
| Rake | Negative |
| Keyway Width (Decimal Inch) | 1.0100 |
| Cutting Direction | Right Hand |
| Pitch | Fine |
| Overall Diameter (Decimal Inch) | 10.5100 |
| Counterbore Diameter (Decimal Inch) | 1.0200 |
| Complete Insert Compatibility | PNEU 1205ANER-GL; PNEU 1205ANER-W; PNMU 1205ANER-GH; PNMU 1205ANER-GM; PNMU 1205ANER-SM |
