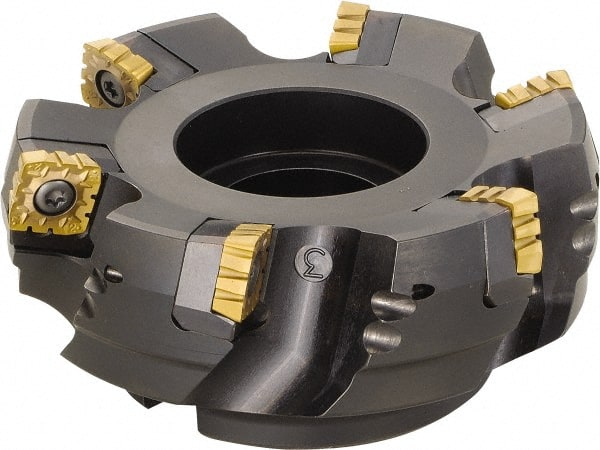

Kyocera - 101.6mm Cut Diam, 31.75mm Arbor Hole, 12mm Max Depth of Cut, 75° Indexable Chamfer & Angle Face Mill - 6 Inserts, SPMT1806 Insert, Right Hand Cut, 6 Flutes, Series MSRS15
Item #: 50421429
Brand: Kyocera
Model #: 8826161
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 0 |
| Cutting Diameter (mm) | 101.60 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 0 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 75 |
| Overall Height (Decimal Inch) | 1.97 |
| Insert Compatibility | SPMT1806 |
| Series | MSRS15 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | MSRS |
| Number of Flutes | 6 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Maximum RPM | 398 |
| Cutting Direction | Right Hand |
| Pitch | Fine |
| Maximum Insert Radius (Decimal Inch) | 0.0470 |
| Overall Diameter (Decimal Inch) | 4.2700 |
| Counterbore Diameter (Decimal Inch) | 1.3800 |
| Complete Insert Compatibility | SPMT 1806EDER-NB2; SPMT 1806EDER-NB2P; SPMT 1806EDER-NB3; SPMT 1806EDER-NB3P; SPMT 1806EDER-V; SPMT 1806EDSR-NB2T; SPMT 1806EDSR-NB3T |
