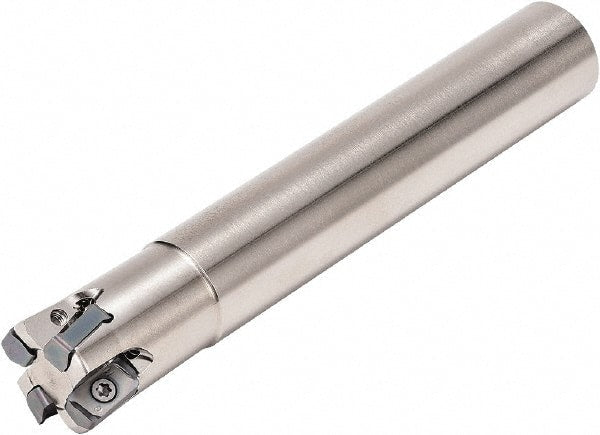

Kyocera - 19.05mm Cut Diam, 0.9906mm Max Depth, 3/4" Shank Diam, Cylindrical Shank Indexable High-Feed End Mill - Screw Holding Method, LOGU 030310ER-GM Insert, MFH Toolholder, Through Coolant
Item #: 50421999
Brand: Kyocera
Model #: 8606964
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 19.0500 |
| Cutting Diameter (Decimal Inch) | 0.750000 |
| Maximum Depth of Cut (mm) | 0.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Cutter Inserts | 3 |
| Insert Style | LOGU 030310ER-GM |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Maximum RPM | 15700 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 3.0000 |
| Overall Length (Decimal Inch) | 6.5000 |
| Manufacturers Catalog Number | MFH 0750-S750-03-3T65 |
