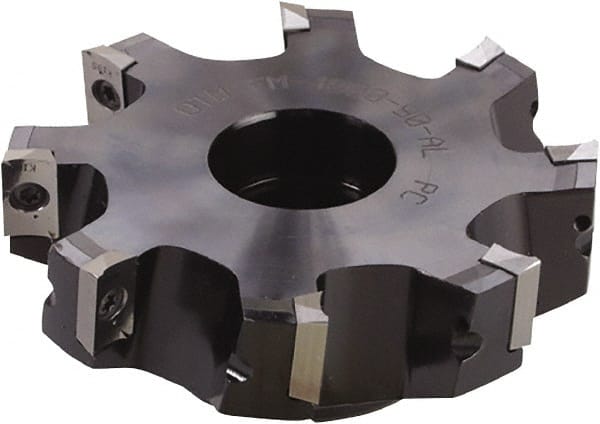

Kyocera - 8 Inserts, 4" Cut Diam, 1" Arbor Diam, 0.64" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 1.57" High, APET 1604 Insert Compatibility
Item #: 50422500
Brand: Kyocera
Model #: 8601035
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | APET 1604 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.6400 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | FM |
| Number of Flutes | 8 |
| Cutting Rake Angle | 0 |
| Rake | Neutral |
| Keyway Width (Inch) | 3/8 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Complete Insert Compatibility | APET 160416; APET 160431; APET 1604PDFR |
