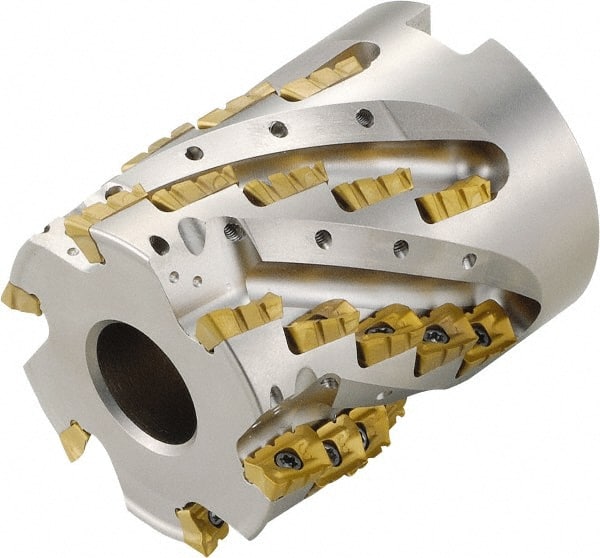

Kyocera - 16 Inserts, 40mm Cut Diam, 9mm Arbor Diam, 37mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 50mm High, BDMT 11T3 Insert Compatibility
Item #: 50422666
Brand: Kyocera
Model #: 8825177
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Arbor Hole Diameter (mm) | 9.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.3543 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | BDMT 11T3 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 37.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4567 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Cutter Style | MECH |
| Number of Flutes | 4 |
| Cutting Rake Angle | -8 |
| Rake | Negative |
| Keyway Width (mm) | 8.40 |
| Keyway Width (Decimal Inch) | 0.3307 |
| Keyway Depth (Decimal Inch) | 0.220472 |
| Keyway Depth (mm) | 5.60 |
| ISO Number | MECH040R-11-4-4T-M |
| Complete Insert Compatibility | BDMT 11T308ER-N2; BDMT 11T308ER-N3 |
