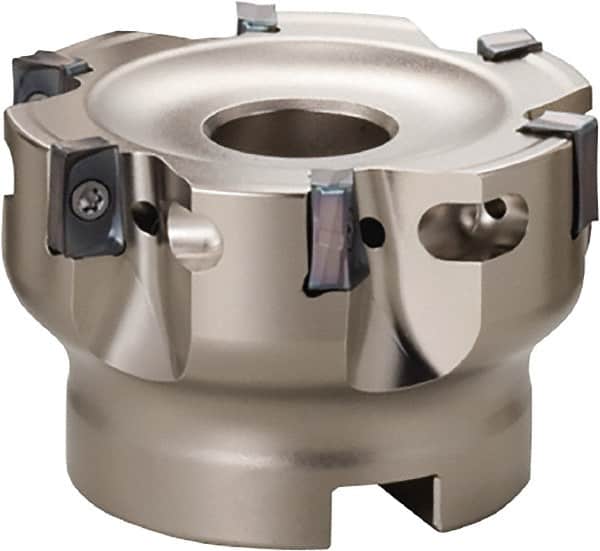

Kyocera - 4 Inserts, 40mm Cut Diam, 9mm Arbor Diam, 15mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 40mm High, LOMU 1505..ER-GH, LOMU 1505..ER-GM & LOMU 1505..ER-SM Insert Compatibility, Through Coolant, Series M-Four
Item #: 50422757
Brand: Kyocera
Model #: 8835684
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Arbor Hole Diameter (mm) | 9.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.3543 |
| Lead Angle | 0 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | LOMU 1505..ER-GH; LOMU 1505..ER-GM; LOMU 1505..ER-SM |
| Series | M-Four |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | MEW |
| Number of Flutes | 4 |
| Cutting Rake Angle | -21 |
| Rake | Negative |
| Keyway Width (mm) | 8.00 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Keyway Depth (Decimal Inch) | 0.236220 |
| Keyway Depth (mm) | 6 |
| Maximum RPM | 25000 |
| ISO Number | MEW040R-15-4T-M |
| Complete Insert Compatibility | LOMU 150504ER-GM; LOMU 150508ER-GH; LOMU 150508ER-GM; LOMU 150508ER-SM; LOMU 150510ER-GM; LOMU 150512ER-GM; LOMU 150516ER-GM; LOMU 150520ER-GM |
