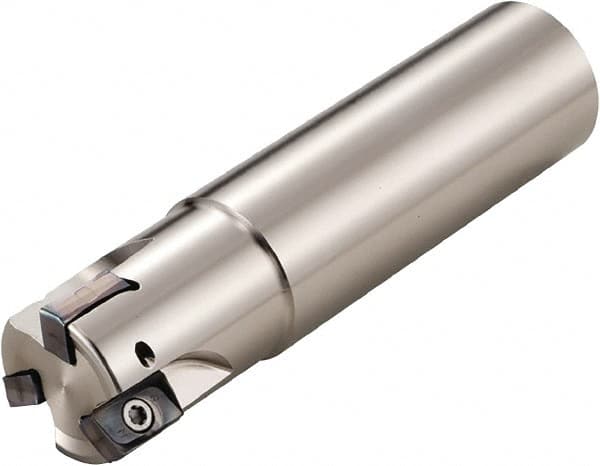

Kyocera - 4 Inserts, 1-1/2" Cut Diam, 0.59" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, LOMU 1505..ER-GH, LOMU 1505..ER-GM & LOMU 1505..ER-SM Insert Compatibility, Through Coolant, Series M-Four
Item #: 50422773
Brand: Kyocera
Model #: 8606973
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 90 |
| Insert Compatibility | LOMU 1505..ER-GH; LOMU 1505..ER-GM; LOMU 1505..ER-SM |
| Series | M-Four |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | MEW |
| Number of Flutes | 4 |
| Rake | Negative |
| Maximum RPM | 25600 |
