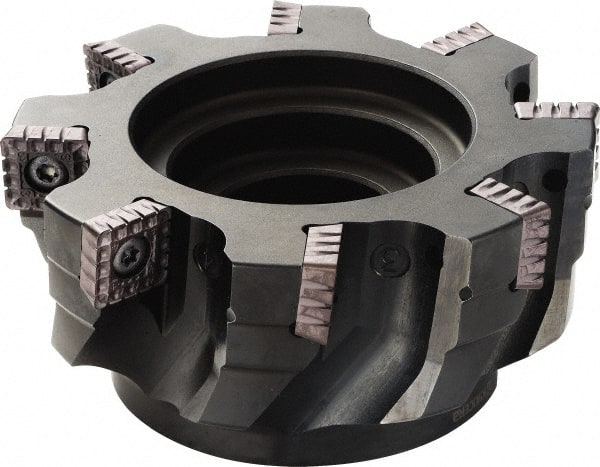

Kyocera - 12 Inserts, 100mm Cut Diam, 21mm Arbor Diam, 31mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 70mm High, SPMT1806 Insert Compatibility
Item #: 50423516
Brand: Kyocera
Model #: 8833549
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 21.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8268 |
| Lead Angle | 90 |
| Overall Height (mm) | 70.00 |
| Overall Height (Decimal Inch) | 2.7559 |
| Insert Compatibility | SPMT1806 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 31.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2205 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | MSRS |
| Number of Flutes | 6 |
| Cutting Rake Angle | -10 |
| Rake | Negative |
| Keyway Width (Decimal Inch) | 0.6250 |
| Keyway Depth (Decimal Inch) | 0.393701 |
| Keyway Depth (mm) | 10 |
| ISO Number | MSRS90100R-2-6T |
| Complete Insert Compatibility | SPMT 180616EN-NB3; SPMT 180616EN-NB3P; SPMT 180616EN-NB4; SPMT 180616EN-NB4P; SPMT 180616EN-V |
