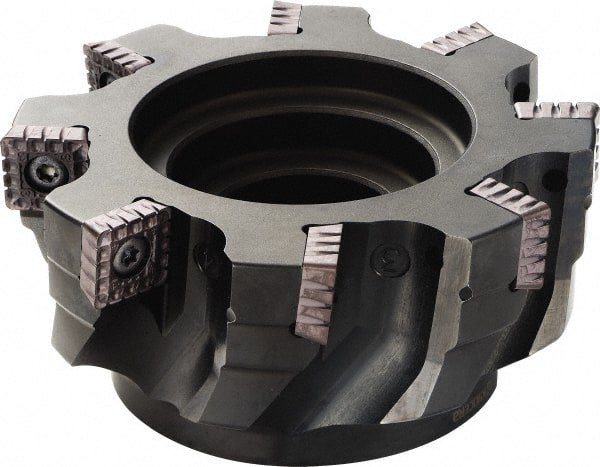

Kyocera - 16 Inserts, 80mm Cut Diam, 13mm Arbor Diam, 60mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 85mm High, SPMT1806 Insert Compatibility
Item #: 50423698
Brand: Kyocera
Model #: 8833546
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 13.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.5118 |
| Lead Angle | 90 |
| Overall Height (mm) | 85.00 |
| Overall Height (Decimal Inch) | 3.3465 |
| Insert Compatibility | SPMT1806 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 60.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.3622 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Cutter Style | MSRS |
| Number of Flutes | 4 |
| Cutting Rake Angle | -10 |
| Rake | Negative |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Keyway Depth (Decimal Inch) | 0.275591 |
| Keyway Depth (mm) | 7 |
| ISO Number | MSRS90080R-4-4T-M |
| Complete Insert Compatibility | SPMT 180616EN-NB3; SPMT 180616EN-NB3P; SPMT 180616EN-NB4; SPMT 180616EN-NB4P; SPMT 180616EN-V |
