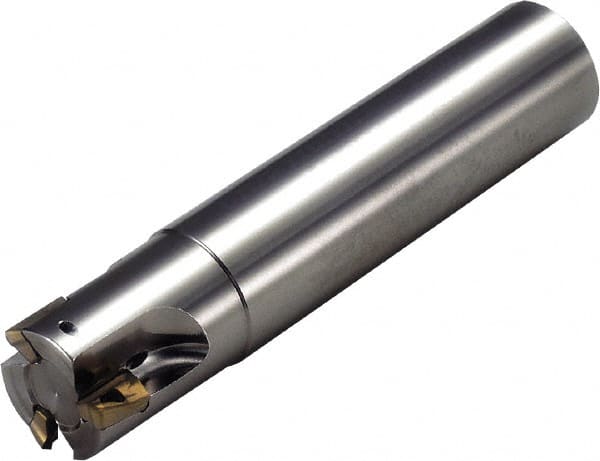

Kyocera - 20mm Cut Diam, 10mm Max Depth of Cut, 20mm Shank Diam, 170mm OAL, Indexable Square Shoulder End Mill - BDMT 11T3 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant
Item #: 50423953
Brand: Kyocera
Model #: 8828397
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length/Projection (mm) | 170.00 |
| Overall Length/Projection (Decimal Inch) | 6.6929 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.393701 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEC |
| Number of Flutes | 2 |
| Head Length (mm) | 60.00 |
| Head Length (Decimal Inch) | 2.3622 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 11T3 |
| Shank Length (Decimal Inch) | 4.3307 |
| Shank Length (mm) | 110.00 |
| Maximum RPM | 41000 |
