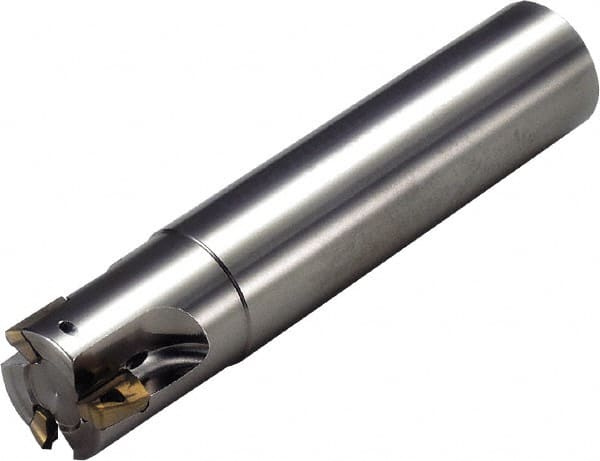

Kyocera - 32mm Cut Diam, 10mm Max Depth of Cut, 63mm OAL, Indexable Square Shoulder End Mill - BDGT 11T3, BDMT 11T3 Inserts, M16 Modular Connection, 90° Lead Angle, Through Coolant
Item #: 50424142
Brand: Kyocera
Model #: 8837966
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Overall Length/Projection (mm) | 63.00 |
| Overall Length/Projection (Decimal Inch) | 2.4803 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.393701 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEC |
| Number of Flutes | 4 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Weldon Flat | No |
| Insert Compatibility | BDGT 11T3; BDMT 11T3 |
| Maximum RPM | 33900 |
