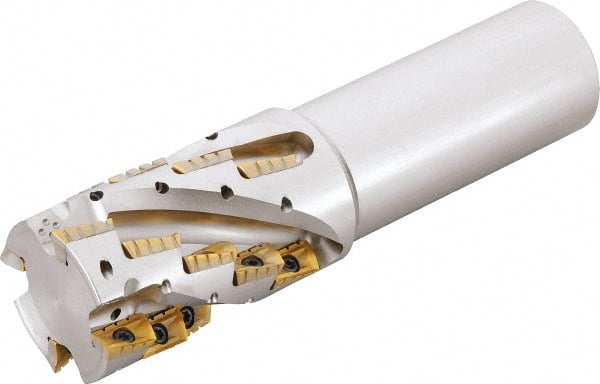

Kyocera - 25mm Cut Diam, 37mm Max Depth of Cut, 25mm Shank Diam, 120mm OAL, Indexable Square Shoulder Helical End Mill - BDMT 11T308ER-N2, BDMT 11T308ER-N3 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant
Item #: 50424225
Brand: Kyocera
Model #: 8825966
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 120.00 |
| Overall Length/Projection (Decimal Inch) | 4.7244 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 37.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.456693 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | MECH |
| Number of Flutes | 2 |
| Head Length (mm) | 46.00 |
| Head Length (Decimal Inch) | 1.8110 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 11T308ER-N2; BDMT 11T308ER-N3 |
| Shank Length (Decimal Inch) | 2.9134 |
| Shank Length (mm) | 74.00 |
