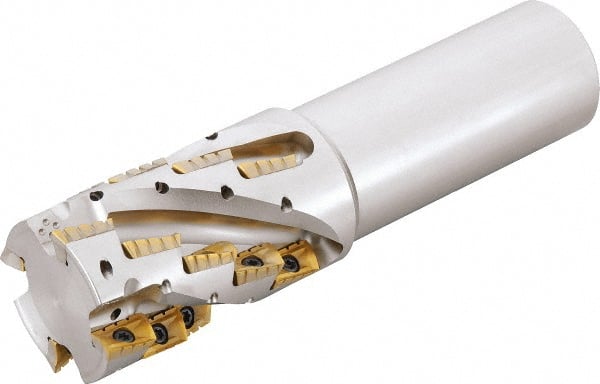

Kyocera - 32mm Cut Diam, 46mm Max Depth of Cut, 32mm Shank Diam, 140mm OAL, Indexable Square Shoulder Helical End Mill - BDMT 11T308ER-N2, BDMT 11T308ER-N3 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant
Item #: 50424241
Brand: Kyocera
Model #: 8825941
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 140.00 |
| Overall Length/Projection (Decimal Inch) | 5.5118 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 46.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.811024 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | MECH |
| Number of Flutes | 2 |
| Head Length (mm) | 55.00 |
| Head Length (Decimal Inch) | 2.1654 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 11T308ER-N2; BDMT 11T308ER-N3 |
| Shank Length (Decimal Inch) | 3.3465 |
| Shank Length (mm) | 85.00 |
