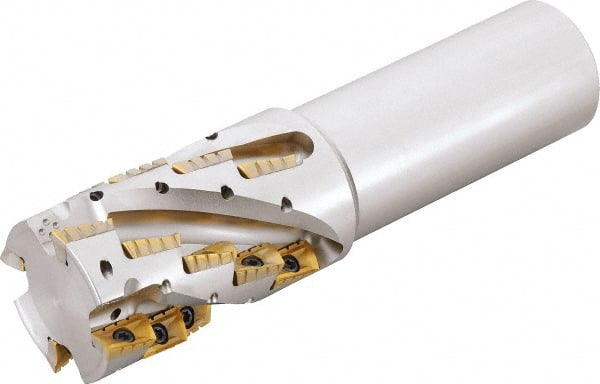

Kyocera - 40mm Cut Diam, 59mm Max Depth of Cut, 32mm Shank Diam, 160mm OAL, Indexable Square Shoulder Helical End Mill - BDMT 170408ER-N3, BDMT 170408ER-N4 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant
Item #: 50424258
Brand: Kyocera
Model #: 8825967
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 160.00 |
| Overall Length/Projection (Decimal Inch) | 6.2992 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 59.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.322835 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | MECH |
| Number of Flutes | 2 |
| Head Length (mm) | 73.00 |
| Head Length (Decimal Inch) | 2.8740 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 170408ER-N3; BDMT 170408ER-N4 |
| Shank Length (Decimal Inch) | 3.4252 |
| Shank Length (mm) | 87.00 |
