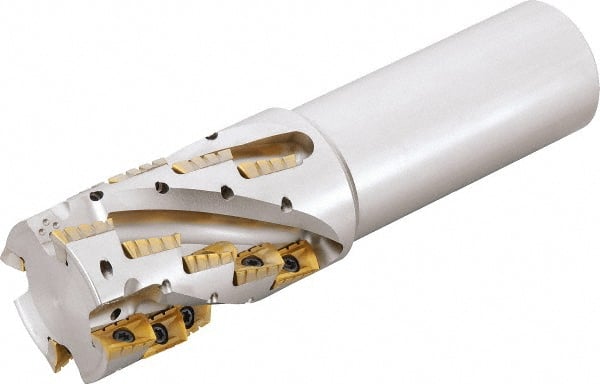

Kyocera - 50mm Cut Diam, 64mm Max Depth of Cut, 42mm Shank Diam, 172mm OAL, Indexable Square Shoulder Helical End Mill - BDMT 11T308ER-N2, BDMT 11T308ER-N3 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant
Item #: 50424274
Brand: Kyocera
Model #: 8829597
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 42.00 |
| Shank Diameter (Decimal Inch) | 1.6535 |
| Overall Length/Projection (mm) | 172.00 |
| Overall Length/Projection (Decimal Inch) | 6.7717 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 64.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.519685 |
| Number of Cutter Inserts | 42 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | MECH |
| Number of Flutes | 6 |
| Head Length (mm) | 75.00 |
| Head Length (Decimal Inch) | 2.9528 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 11T308ER-N2; BDMT 11T308ER-N3 |
| Shank Length (Decimal Inch) | 3.8189 |
| Shank Length (mm) | 97.00 |
