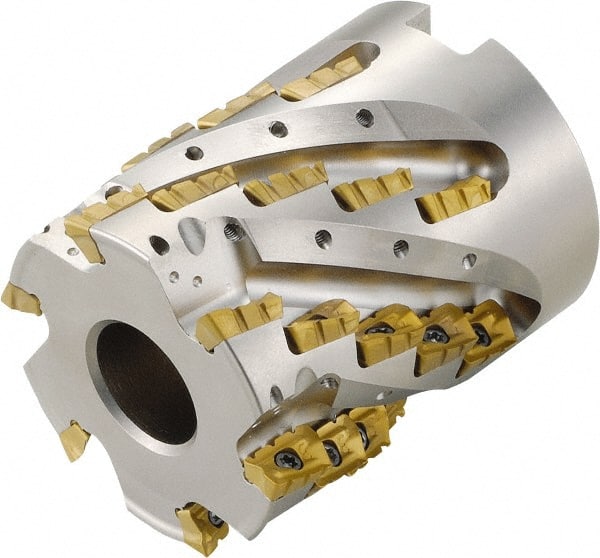

Kyocera - 100mm Cut Diam, 104mm Max Depth of Cut, 274.8mm OAL, Indexable Square Shoulder Helical End Mill - BDMT 170408ER-N3, BDMT 170408ER-N4 Inserts, BT50 Taper Shank, 90° Lead Angle
Item #: 50424290
Brand: Kyocera
Model #: 8829605
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Shank Type | Taper Shank |
| Shank Taper Size | BT50 |
| Overall Length/Projection (mm) | 274.80 |
| Overall Length/Projection (Decimal Inch) | 10.8189 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 104.00 |
| Maximum Depth of Cut (Decimal Inch) | 4.094488 |
| Number of Cutter Inserts | 42 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | MECH |
| Number of Flutes | 6 |
| Head Length (mm) | 173.00 |
| Head Length (Decimal Inch) | 6.8110 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 170408ER-N3; BDMT 170408ER-N4 |
| Shank Length (Decimal Inch) | 4.0079 |
| Shank Length (mm) | 101.80 |
