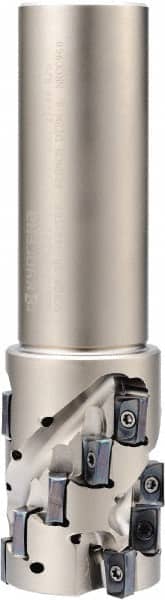

Kyocera - 50mm Cut Diam, 46mm Max Depth of Cut, 64mm OAL, Indexable Square Shoulder End Mill - LOMU 1004..ER-GH, LOMU 1004..ER-GM, LOMU 1004..ER-SM Inserts, 90° Lead Angle, Series M-Four
Item #: 50424829
Brand: Kyocera
Model #: 8838753
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Overall Length/Projection (mm) | 64.00 |
| Overall Length/Projection (Decimal Inch) | 2.5197 |
| Lead Angle | 90 |
| Series | M-Four |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 46.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.811024 |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEW |
| Number of Flutes | 3 |
| Insert Compatibility | LOMU 1004..ER-GH; LOMU 1004..ER-GM; LOMU 1004..ER-SM |
