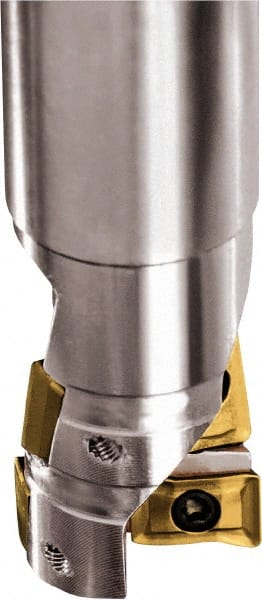

Kyocera - 50mm Cut Diam, 9.5mm Max Depth of Cut, 42mm Shank Diam, 250mm OAL, Indexable Square Shoulder End Mill - GOMT 160408ER-D, JOMT 160408ER-D Inserts, Cylindrical Shank, 90° Lead Angle
Item #: 50424951
Brand: Kyocera
Model #: 8812585
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 42.00 |
| Shank Diameter (Decimal Inch) | 1.6535 |
| Overall Length/Projection (mm) | 250.00 |
| Overall Length/Projection (Decimal Inch) | 9.8425 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.374016 |
| Number of Cutter Inserts | 7 |
| End Mill Type | End Mill |
| Head Length (mm) | 9.50 |
| Head Length (Decimal Inch) | 0.3740 |
| Insert Compatibility | GOMT 160408ER-D; JOMT 160408ER-D |
| Shank Length (Decimal Inch) | 7.0866 |
| Shank Length (mm) | 180.00 |
