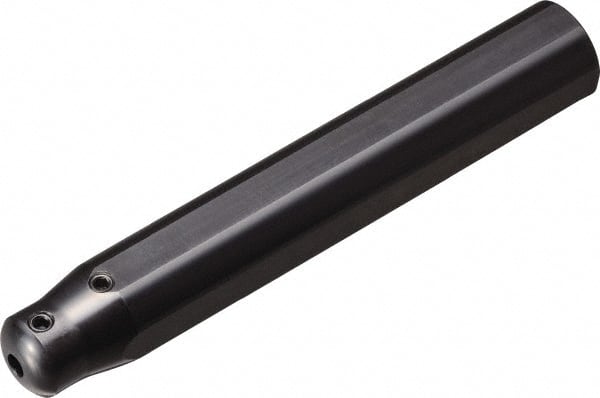

Kyocera - 1.7mm Bore Diam, 22mm Shank Diam, Boring Bar Sleeve - 135mm OAL, 8mm Bore Depth
Item #: 50446855
Brand: Kyocera
Model #: 8838051
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Bore Diameter (mm) | 1.7000 |
| Bore Diameter (Decimal Inch) | 0.0669 |
| Shank Diameter (mm) | 22.00 |
| Shank Diameter (Decimal Inch) | 0.8661 |
| Overall Length (mm) | 135.00 |
| Overall Length (Decimal Inch) | 5.314961 |
| Bore Depth (mm) | 8.00 |
| Head Diameter (mm) | 13.00 |
| Head Diameter (Decimal Inch) | 0.511811 |
| Screw Size | M3 |
| Body Length (mm) | 119.00 |
| Body Length (Decimal Inch) | 4.6850 |
