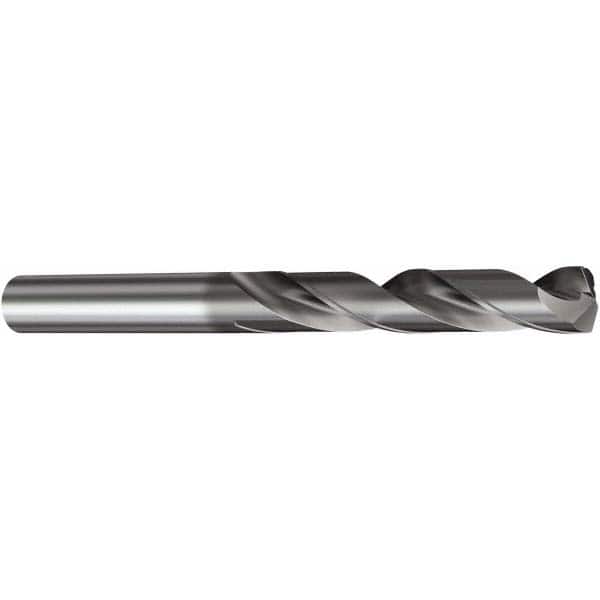

Sandvik Coromant - 10.4mm 140° Solid Carbide Screw Machine Drill Bit
Item #: 49568025
Brand: Sandvik Coromant
Model #: 6241446
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.4094 |
| Drill Bit Size (mm) | 10.40 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 55.00 |
| Flute Length (Decimal Inch) | 2.1654 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Maximum Drilling Depth (mm) | 32.70 |
| Maximum Drilling Depth (Decimal Inch) | 1.2874 |
| Number of Flutes | 2 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 1.50 |
| Drill Point Length (Decimal Inch) | 0.0591 |
| Through Coolant | No |
| Series/List | CoroDrill 460 |
