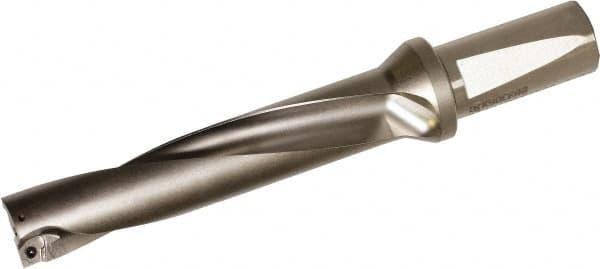

Kyocera - 4.38" Max Drill Depth, 5xD, 7/8" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Whistle Notch Shank
Item #: 50458728
Brand: Kyocera
Model #: 8837209
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DRX |
| Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (Decimal Inch) | 4.3800 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Insert Size (Decimal Inch) | 0.4020 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8750 |
| Overall Length/Projection (Decimal Inch) | 7.3200 |
| Insert Compatibility | ZXMT 070305SM |
| Body Length (Decimal Inch) | 5.2000 |
| Shank Length (Decimal Inch) | 2.1200 |
| Collar Diameter (Decimal Inch) | 1.3800 |
| Series | Magic Drill |
