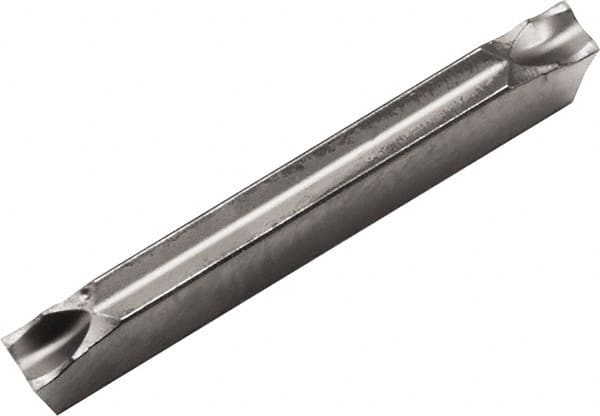

Kyocera - 1516GDM PF Grade PR1535, 1.5mm Cutting Width Carbide Grooving Insert - Neutral, 0.03mm Corner Radius, Megacoat Nano Finish
Item #: 50468990
Brand: Kyocera
Model #: 8842584
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GDM |
| Insert Size | 1516 |
| Material | Carbide |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Manufacturer's Grade | PR1535 |
| Coating | Megacoat Nano |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 3.70 |
| Cutting Height (Decimal Inch) | 0.1457 |
| Chipbreaker | PF |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Corner Radius (mm) | 0.03 |
| Corner Radius (Decimal Inch) | 0.001181 |
| Coating Process | PVD |
| Overall Length (mm) | 16.00 |
| Overall Length (Decimal Inch) | 0.6299 |
| Series | GD |
| Manufacturers Catalog Number | GDM1516N-003PF |
| Insert Thickness (Decimal Inch) | 0.0472 |
| Insert Thickness (mm) | 1.2000 |
