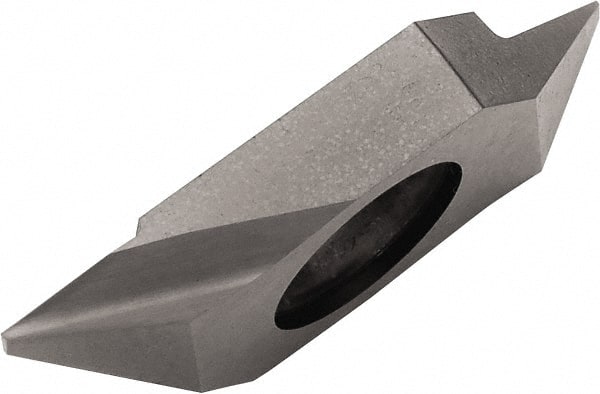

Kyocera - TKFB12 Grade PR1535 Carbide Turning Insert - Megacoat Nano Finish, 60° Triangle, 3mm Thick, 0.0508mm Corner Radius
Item #: 50476324
Brand: Kyocera
Model #: 8844711
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TKFB |
| Insert Size | 12 |
| Material | Carbide |
| Thickness (Decimal Inch) | 0.1181 |
| Thickness (mm) | 3.00 |
| Corner Radius (mm) | 0.0508 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Manufacturer's Grade | PR1535 |
| Coating | Megacoat Nano |
| Hole Diameter (mm) | 5.20 |
| Hole Diameter (Decimal Inch) | 0.2047 |
| Rake | Positive |
| Coating Process | PVD |
| Manufacturers Catalog Number | TKFB12R28005M PR1535 |
| Primary Workpiece Material | S |
| Included Angle | 60 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 4.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1811 |
| Insert Holding Method | Screw |
| Cutting Width (mm) | 2.80 |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
