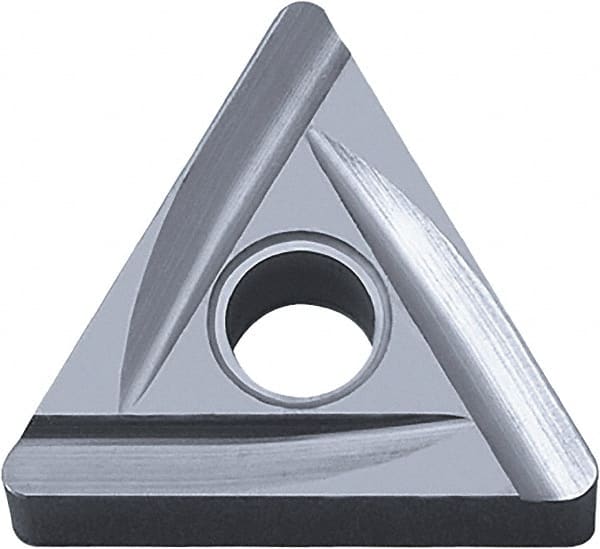

Kyocera - TNGG330.5 B Grade PR930 Carbide Turning Insert - TiCN Finish, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 0.008" Corner Radius
Item #: 50477314
Brand: Kyocera
Model #: 8814462
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNGG |
| Insert Size | 330.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | PR930 |
| Coating | TiCN |
| Material Grade | Super Micrograin |
| Chip Breaker | B |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | TNGG160402R-B |
| Rake | Negative |
| Rake Angle | 14 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | TNGG3305RB PR930 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
