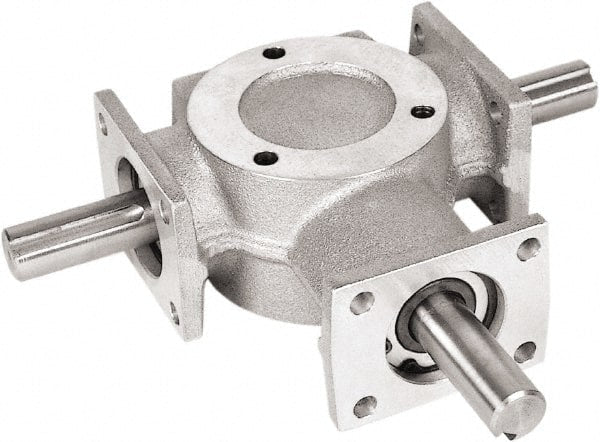

Hub City - Speed Reducers Centerline Distance: 0.937 (Decimal Inch) Ratio: 1:1
Item #: 50483361
Brand: Hub City
Model #: 0220-05401
Exact Tooling IR#: 04
Product Specifications
Speed Reducers; Centerline Distance: 0.937 (Decimal Inch); Ratio: 1:1 ; NEMA Size: 0 ; PartNo: 0220-05401 ; Shaft Style: Solid ; Shaft Diameter (Decimal Inch): 0.6250
| Centerline Distance (Decimal Inch) | 0.937 |
| Ratio | 1:1 |
| NEMA Size | 0 |
| PartNo | 0220-05401 |
| Shaft Style | Solid |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Height (Inch) | 2 |
| Length (Decimal Inch) | 7.250 |
| Minimum Torque (In/Lb) | 75.5 |
| Maximum Torque Inch/Lbs (Pounds) | 85.80 |
| Minimum Input Horsepower | 0.14 |
| Maximum Input Horsepower | 4.31 |
| Output RPM at 1750 Input | 1750.0 |
