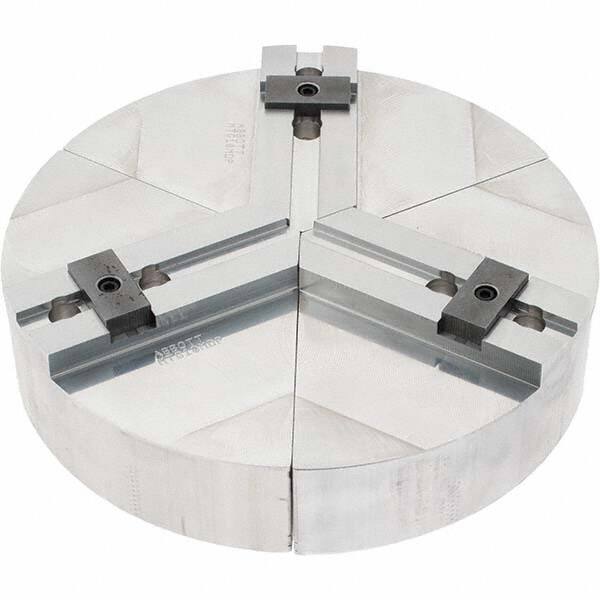

Abbott Workholding Products - 10" Max Chuck Capacity, Tongue & Groove Interface, Round Soft Lathe Chuck Jaw - 3 Jaw, Aluminum, 40mm Btw Mount Hole Ctrs, 10" Wide, 2" High, 12mm Groove, 12mm Fastener
Item #: 50484781
Brand: Abbott Workholding Products
Model #: MTG10MDP
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Round |
| Material | Aluminum |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 10 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 10.0000 |
| Maximum Compatible Chuck Diameter (mm) | 254.00 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 10.0000 |
| Overall Height (mm) | 50.80 |
| Overall Height (Inch) | 2 |
| Groove Width (mm) | 12.00 |
| Groove Width (Decimal Inch) | 0.4724 |
| Distance Between Mount Hole Centers (mm) | 40.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.5748 |
| Tongue Width (Decimal Inch) | 0.7870 |
| Jaw End Shape | Pointed |
| Fastener Size (mm) | 12.00 |
| Fastener Size (Decimal Inch) | 0.4724 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 254.00 |
| Overall Width/Diameter (Inch) | 10 |
| Overall Width/Diameter (Decimal Inch) | 10.0000 |
| Material Grade | 6061 |
