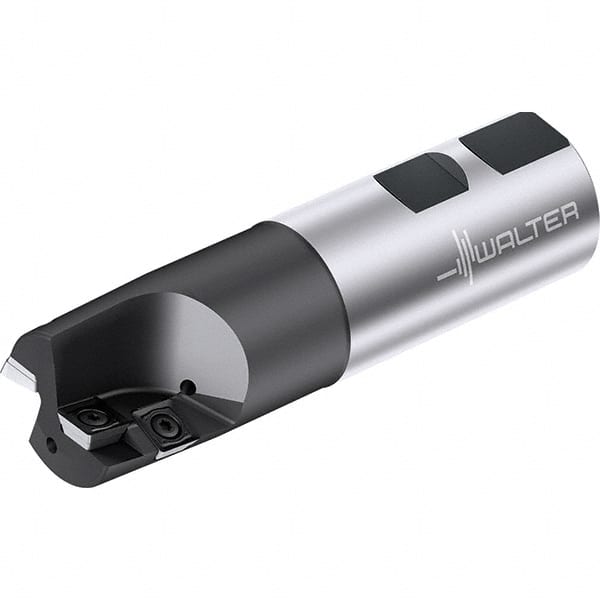

Walter - 29.9mm Cut Diam, 20.8mm Max Depth of Cut, 32mm Shank Diam, 115mm OAL, Indexable Square Shoulder End Mill - Weldon Shank, 0° Lead Angle, Through Coolant, Series M4792-W
Item #: 50489624
Brand: Walter
Model #: 6822368
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 29.90 |
| Cutting Diameter (Decimal Inch) | 1.1770 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Overall Length/Projection (mm) | 115.00 |
| Overall Length/Projection (Decimal Inch) | 4.5280 |
| Lead Angle | 0 |
| Series | M4792-W |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 20.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.819 |
| Number of Cutter Inserts | 1 |
| Number of Flutes | 1 |
| Maximum RPM | 7500 |
| Toolholder Material | Steel |
