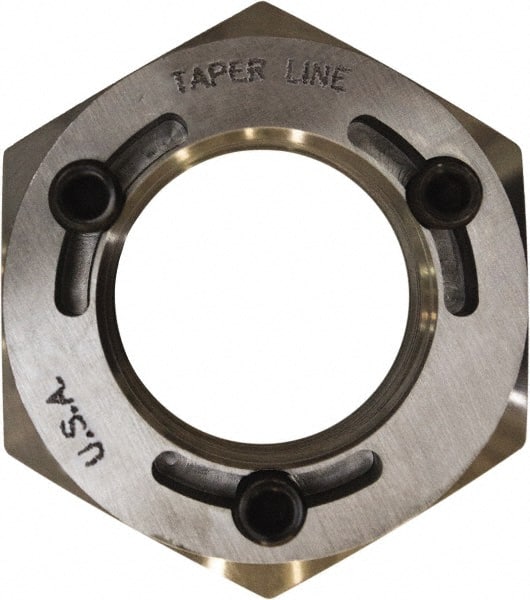

Taper Line - 3-12 Thread, 3" Bore Diam, 4-1/2" OD, Shaft Locking Device - 1-45/64" OAW
Item #: 50528066
Brand: Taper Line
Model #: TLHN 3-12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 3-12 |
| Bore Diameter (Inch) | 3 |
| Bore Diameter (Decimal Inch) | 3.0000 |
| Outside Diameter (Decimal Inch) | 4.5000 |
| Thrust Ring Width (Decimal Inch) | 0.000 |
| Overall Width (Decimal Inch) | 1.7030 |
| Axial Load Lbs (Pounds) | 0 |
| Maximum Torque (Ft/Lb) | 0 |
| Additional Information | Face Locking |
