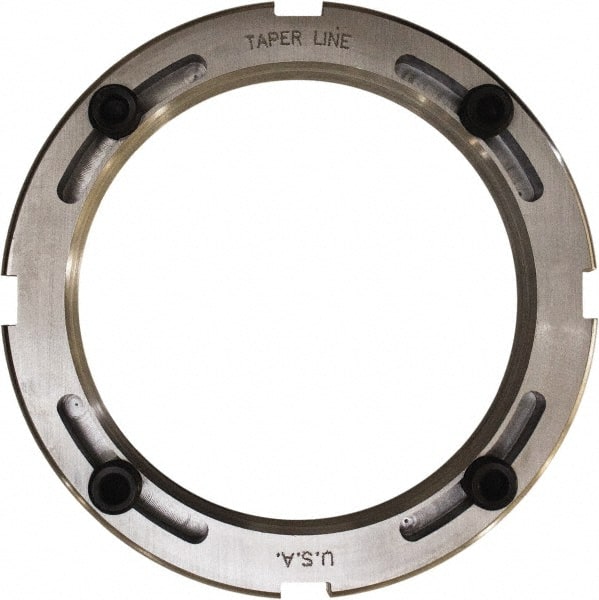

Taper Line - 6.659-8 Thread, 8.031" Bore Diam, 8-21/32" OD, Shaft Locking Device - 1-1/16" OAW
Item #: 50532647
Brand: Taper Line
Model #: TLN 34
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 6.659-8 |
| Bore Diameter (Decimal Inch) | 8.0310 |
| Outside Diameter (Decimal Inch) | 8.6560 |
| Thrust Ring Width (Decimal Inch) | 0.000 |
| Overall Width (Decimal Inch) | 1.0625 |
| Overall Width (Inch) | 1-1/16 |
| Axial Load Lbs (Pounds) | 0 |
| Maximum Torque (Ft/Lb) | 0 |
| Additional Information | Face Locking |
