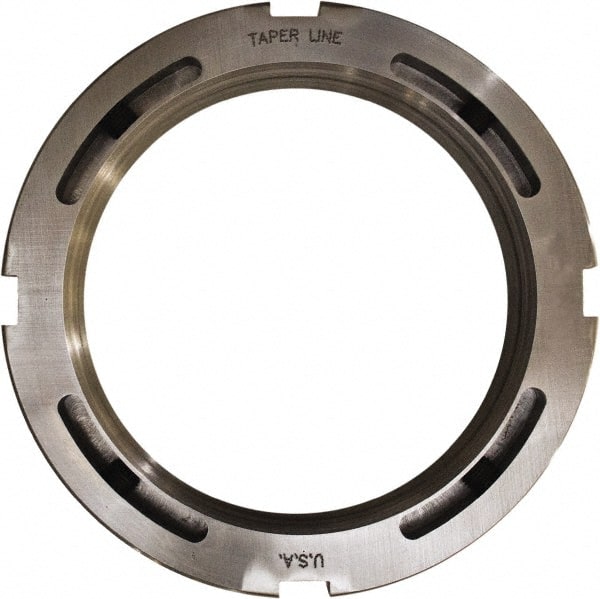

Taper Line - 2.933-12 Thread, 3-9/16" Bore Diam, 3-7/8" OD, Shaft Locking Device - 19/32" OAW
Item #: 50532993
Brand: Taper Line
Model #: TLN 15-PH
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 2.933-12 |
| Bore Diameter (Inch) | 3-9/16 |
| Bore Diameter (Decimal Inch) | 3.5625 |
| Outside Diameter (Decimal Inch) | 3.8750 |
| Thrust Ring Width (Decimal Inch) | 0.000 |
| Overall Width (Decimal Inch) | 0.5940 |
| Axial Load Lbs (Pounds) | 0 |
| Maximum Torque (Ft/Lb) | 0 |
| Additional Information | Peripheral Locking |
