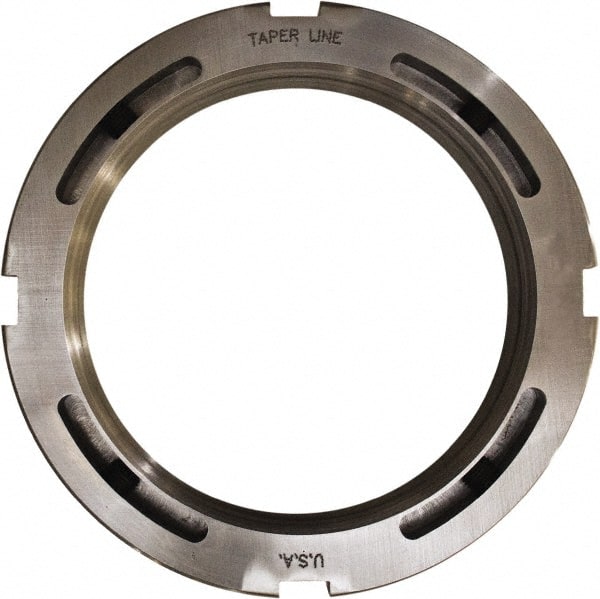

Taper Line - 3.527-12 Thread, 4-9/32" Bore Diam, 4.656" OD, Shaft Locking Device - 11/16" OAW
Item #: 50533017
Brand: Taper Line
Model #: TLN 18-PH
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 3.527-12 |
| Bore Diameter (Decimal Inch) | 4.2810 |
| Outside Diameter (Decimal Inch) | 4.6560 |
| Thrust Ring Width (Decimal Inch) | 0.000 |
| Overall Width (Decimal Inch) | 0.6875 |
| Overall Width (Inch) | 11/16 |
| Axial Load Lbs (Pounds) | 0 |
| Maximum Torque (Ft/Lb) | 0 |
| Additional Information | Peripheral Locking |
