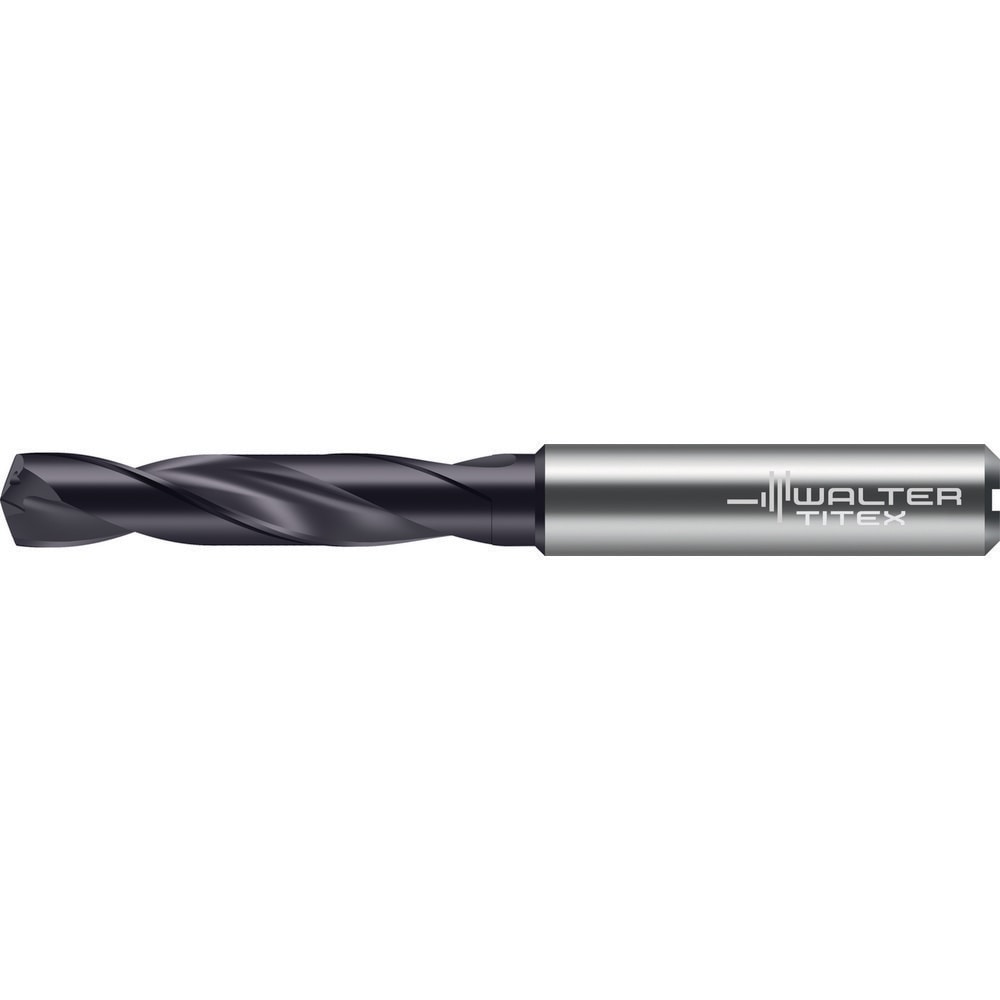

Screw Machine Length Drill Bits; Drill Bit Size (mm): 5.70; Drill Bit Size (Decimal Inch): 0.2244; Tool Material: Solid Carbide; Cutting Direction: Right Hand; Coating/Finish: Multi-layer
Item #: 82752619
Brand: Walter-Titex
Model #: 8324826
Product Specifications
| Drill Bit Size (mm) | 5.70 |
| Drill Bit Size (Decimal Inch) | 0.2244 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Point Type | Standard |
| Shank Type | Whistle Notch |
| Overall Length (mm) | 66.00 |
| Shank Diameter (mm) | 6.00 |
| Series | DC180 |
| Proprietary Coating/Finish | Krato-tec |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (mm) | 20.00 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 1.04 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | m7 |
| Flute Length (mm) | 28.00 |
| UNSPSC Code | 23241605 |
| Country of Origin | France |
