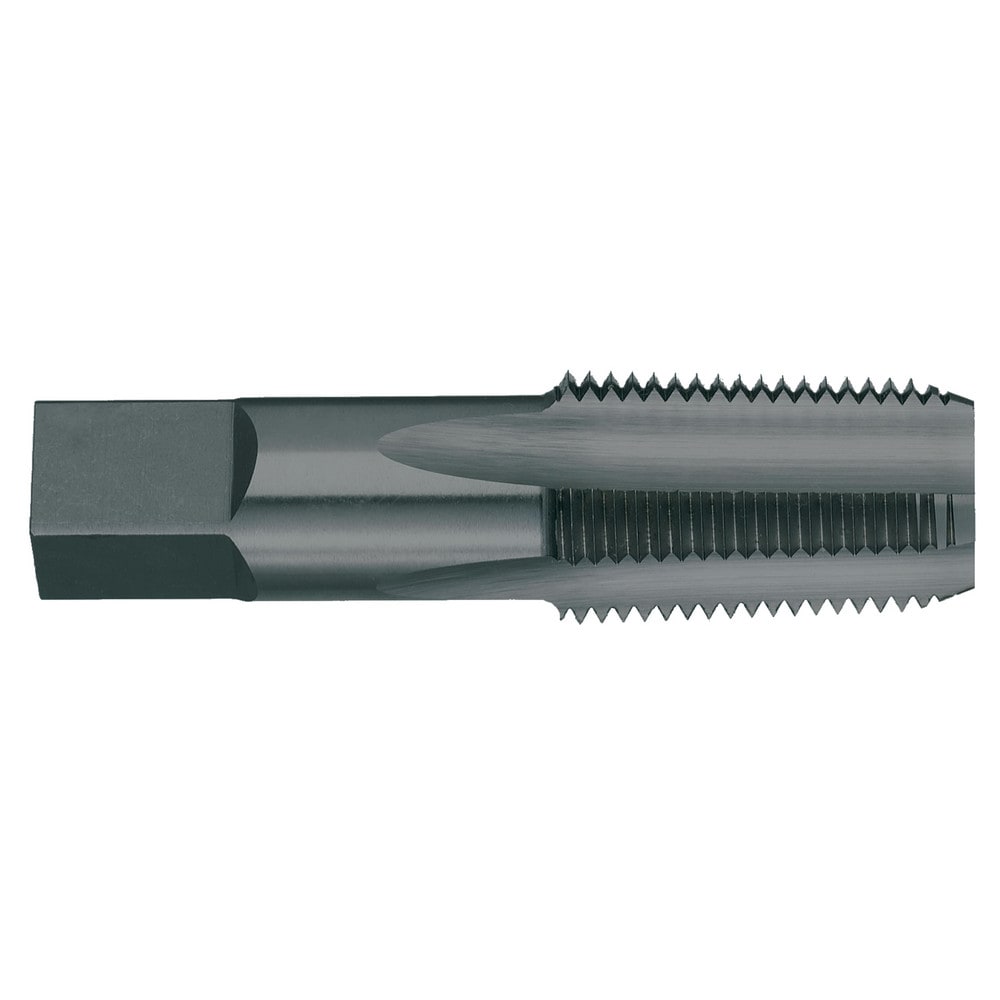

Standard Pipe Taps; Thread Standard: NPT; Material: High-Speed Steel; Overall Length (Inch): 3-3/4; Overall Length (Decimal Inch): 3.7500; Thread Size (Inch): 1-11-1/2; Threads per Inch: 12; Application: Cast Iron; Thread Length (Inch): 1-3/4
Item #: 79197984
Brand: Titan USA
Model #: TT93885
Product Specifications
| Thread Standard | NPT |
| Material | High-Speed Steel |
| Overall Length (Inch) | 3-3/4 |
| Overall Length (Decimal Inch) | 3.7500 |
| Thread Size (Inch) | 1-11-1/2 |
| Threads per Inch | 12 |
| Application | Cast Iron |
| Thread Length (Inch) | 1-3/4 |
| Shank Diameter (Decimal Inch) | 1.1250 |
| Square Length (Inch) | 13/16 |
| Square Size (Decimal Inch) | 0.8430 |
| Chamfer | Taper |
| Thread Profile | Standard |
| Series | General Purpose Taps - High Speed Steel - Taper Pipe - NPT - For Cast Iron |
| Thread Length (Decimal Inch) | 1.7500 |
| Coating/Finish | Nitride & Steam Oxide |
| Square Length (Decimal Inch) | 0.8125 |
| Number Of Flutes | 5 |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
