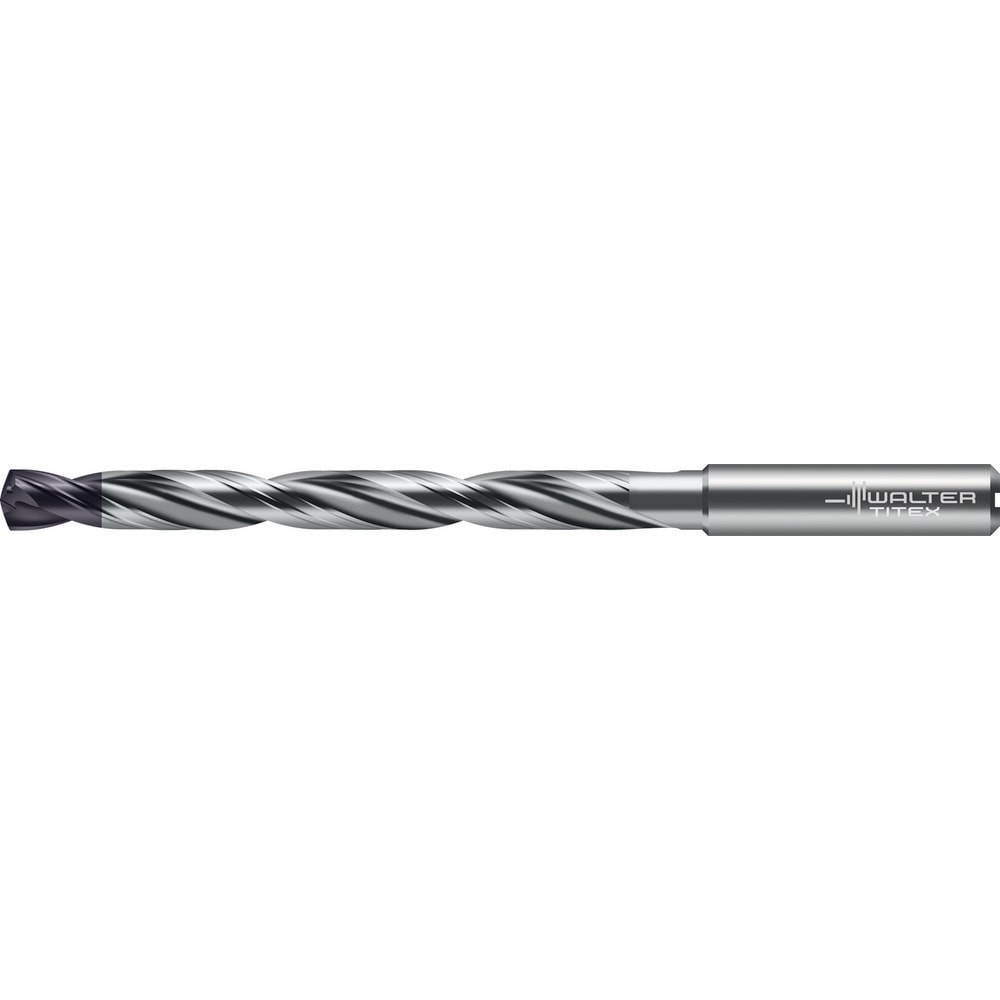

Jobber Length Drill Bits; Drill Bit Size (mm): 9.80; Drill Bit Size (Decimal Inch): 0.3858; Drill Bit Material: Solid Carbide; Drill Point Angle (Degrees): 140; Coating/Finish: ZrN
Item #: 82745571
Brand: Walter-Titex
Model #: 8325159
Product Specifications
| Drill Bit Size (mm) | 9.80 |
| Drill Bit Size (Decimal Inch) | 0.3858 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | ZrN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 139.00 |
| Overall Length (Decimal Inch) | 5.4724 |
| Spiral Type | Regular |
| Flute Length (mm) | 95.00 |
| Flute Length (Decimal Inch) | 3.7402 |
| Series | DC180 |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 10 |
| Maximum Drilling Depth (Decimal Inch) | 3.1496 |
| Maximum Drilling Depth (mm) | 80 |
| Shank Length (mm) | 40 |
| Shank Length (Decimal Inch) | 1.5748 |
| Drill Point Length (mm) | 1.78 |
| Drill Point Length (Decimal Inch) | 0.0702 |
| Drill Bit Diameter Tolerance | m7 |
| Shank Type | Cylindrical |
| UNSPSC Code | 23241605 |
| Country of Origin | France |
